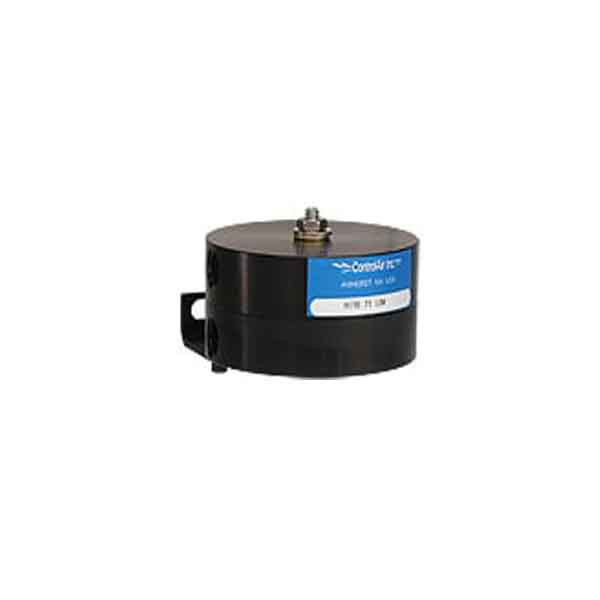

Super Mite 71L/71H

Automatically selects the higher or lower of two input signals.The Super Mite 71 will automatically select the higher or lower of two pneumatic inputs and pass it downstream while blocking the other. Capable of almost instantaneous selection, the Super Mite 71 can separate pressure differentials as low as a tenth of a psi. Although ordered as either high or low pass, the Super Mite 71 can easily be converted in the field from one to the other. The Super Mite 71 can be relied on to open or close valves when a signal pressure drops or rises past a determined value. They can also be used to prevent a valve from opening or closing beyond a critical point.


Download

Specifications

Pressure Rating

100 psig (7 bar) max.

Temperature Limits

-40°F to +180°F (-40°C to +82°C)

Port Sizes

Tapped for 1/4” NPT with 1/8” internal ports

Materials

Aluminum, Plated Steel, Neoprene, Brass and Stainless Steel

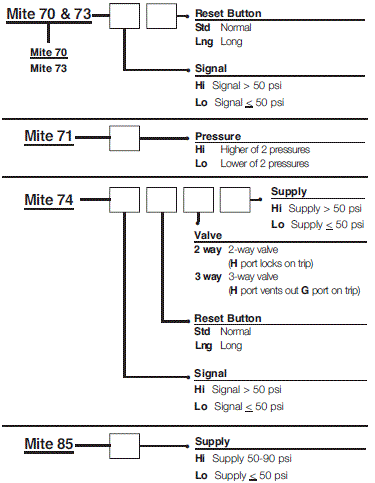

Ordering

Mite Series Snap-Acting Pneumatic Relays
