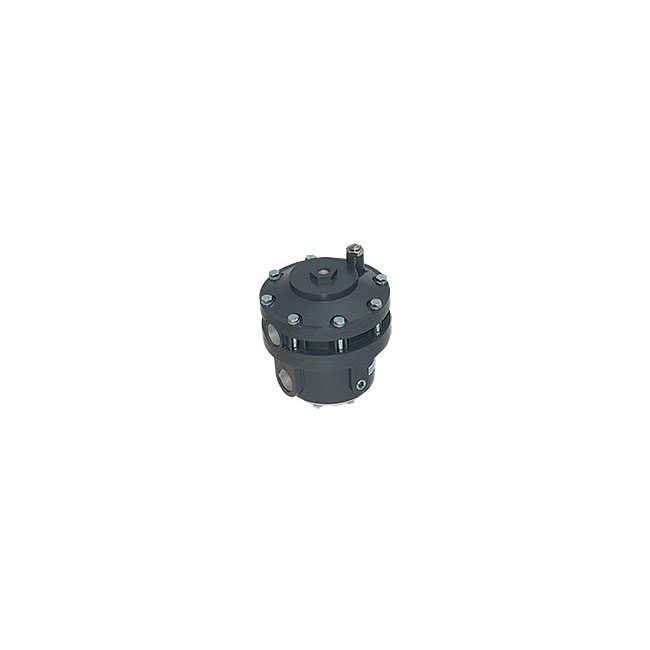

Type 6500/6600 Large Flow Capacity Volume Boosters
Rapid Stroke Capability in a Rugged Aluminum or Stainless Steel Casing
The Type-6500 aluminum and Type-6600 stainless steel volume boosters are 1:1 signal to output relays that are utilized in applications that require high flow capacity. Typically they are used to increase throttling speed of large volume valve actuators. They are suitable for either diaphragm or piston actuators. A fixed deadband and adjustable bypass valve combine to allow small incremental downstream adjustment without opening the main booster valve. The bypass valve is used to adjust dynamic response to provide stable operation over a wide range of actuator sizes.
Specifications
| Signal/Output Ratio | 1:1 | ||
|
Supply Pressure |
250 psig (17.0 BAR) Maximum |
||
| Signal Pressure | 150 psig (10.0 BAR) Maximum | ||
|
Temperature Limits: |
-40 to 200 F (-40 to 93 C) |
||
|
Maximum Flow Coefficients (Cv) |
|
Forward | Exhaust |
| 3/4″ | 8.0 | 8.0 | |
| 1″ | 9.0 | 8.0 | |
| Exhaust Capacity 5 psig (0.35 BAR) above setpoint |
3/4″ 1″ |
150 scfm (4,245 NL/min) 150 scfm (4,245 NL/min) |
|
| Output Accuracy | 2.0% of span | ||
| Deadband | Under 0.2 psig (.01 BAR) | ||
| Suppy Pressure Effect 100 psig (7 BAR) change in supply pressure | 0.3 psig (.02 BAR) | ||
| Signal Port | 1/4″ NPT | ||
| Supply/Output Port | 3/4 or 1″ NPT | ||
| Exhaust Port | 3/4″ NPT | ||
| Gauge Port (2) | 1/4″ NPT | ||
| Feedback Port (Option) | 1/4″ NPT | ||
| Weight | Type-6500 | Aluminum 6.5 lbs (2.95 kg) | |
| Type-6600 | Stainless Steel 15.0 lbs (6.80 kg) | ||
Materials of Construction
| Materials | Type-6500 | Type-6600 |
| Housing | Aluminum | 316 Stainless Steel |
| Bolting | Zinc Plated Steel | 316 Stainless Steel |
| Other trim | Aluminum | 316 Stainless Steel |
| Internal Components | Aluminum | 316 Stainless Steel |
| Elastomers: Low Temperature Option: |
Nitrile Silicone |
Nitrile Silicone |
Ordering
| Part Number | Casting Material | Porting |
| 6500-EA | Aluminum | 3/4″ NPT |
| 6500-FA | Aluminum | 1″ NPT |
| 6600-ES | 316 Stainless Steel | 3/4″ NPT |
| 6600-FS | 316 Stainless Steel | 1″ NPT |
OPTIONS – Add proper letter onto end of model number:
F – Feedback Port
L – Low Temperature Option
R – EAC-TR-CU
S – Stainless Steel Trim (Type-6500 only)
X – ATEX 94/9/EC
ACCESSORIES:
Mounting Bracket (zinc plated steel): P/N 449-542-040.
Mounting Bracket (316 stainless steel): P/N 449-542-041.
3/4″ NPT Exhaust Screen/Muffler Fitting:
Plated Steel P/N: 445-761-006
316 Stainless Steel: P/N: 445-761-007
