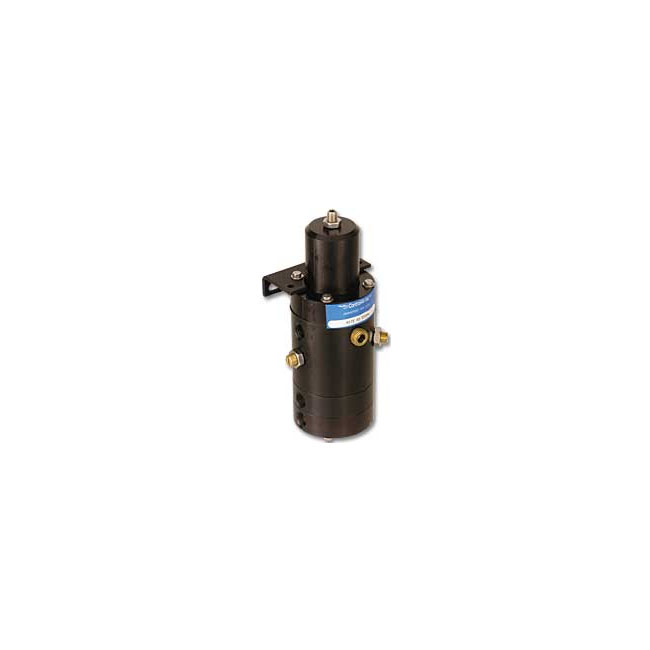

Mite 85

Compact unit that supplies precise air pressure regulation for applications where space is limited. This unit allows large regulator performance in a small package.




Download

Snap-acting 3-way valve with two trip points

The Mite 85 allows you to establish two adjustable trip points that control flow through a 3-way valve. An increasing signal that exceeds the high trip point will open “I” port to “H”. A decreasing signal pressure that drops below the low trip point will vent port “H”. This switching action is reversible and repeatable without having to manually reset. Use the Mite 85 to passively switch to a secondary controller in case the primary system fails.

Specifications

Pressure Rating

90 psig (6 bar) max.

Temperature Limits

-40°F to +180°C (-40°F to +82°C)

Port Sizes

Tapped for 1/4” NPT with 1/8” internal ports

Materials

Aluminum, Plated Steel, Neoprene, Brass and Stainless Steel

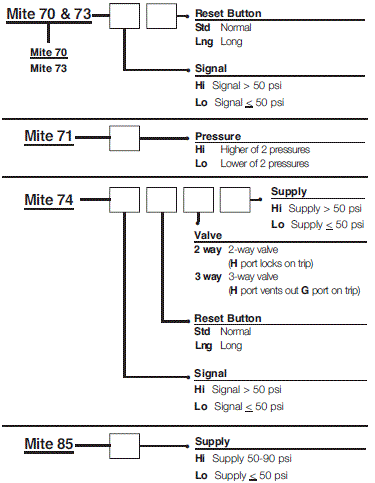

Ordering

Mite Series Snap-Acting Pneumatic Relays
