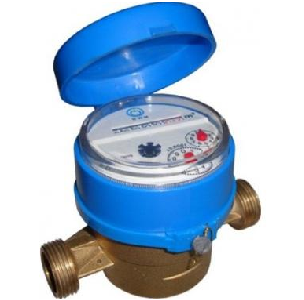

Single Jet Dry Dial SJ-SDC Water Meter

Single jet dry dial water meter is magnetic driven compact meter with low transmission resistance for an excellent performance. This user-friendly water meter can be rotated 360° for reading at any position. The white dial is sealed and dry to prevent water penetration and promise a long-lasting quality.

Category:

The compact Single jet dry water meter is magnetic driven with low transmission resistance for an excellent performance. This user-friendly water meter can be rotated 360° for reading at any position. The white dial is sealed and dry to prevent water penetration and promise a long-lasting quality.

Features:

  • SJ-SDC (15-50D3)
  • SJ-SDC (15-25D7)
  • Pulse output vision
  • Single-jet
  • Magnetic drive, lower transmission resistance
  • Magnetic shield, for external magnetic field protection
  • White sealed dry dial register with red pressure indicators
  • Register can be rotated 360° for reading in any position
  • Inlet strainer
  • Compact and light
  • Ideal for home use
  • Available in various colours

Specifications

Order code Temperature

Qn
Nominal
Flow m3/h
Qmin
Min
Flow l/h
  SJ-SDC15R160-30 30ᵒC              2.0            15
 SJ-SDC20R160-30 30ᵒC              4.0            20

Applications

Keeps track of the amount of water you use at home with this single-jet water meter.
